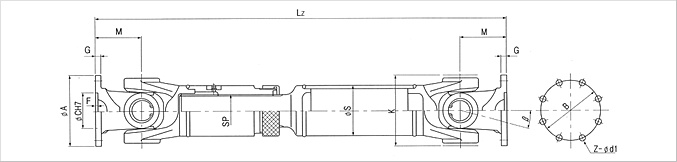

SIZE Ty Tw β A P.C.D(B) CM7 F G K M SP S Z d1(C12) Lz La
HYUNDAI kgf · m ° mm mm mm mm mm mm mm mm mm EA mm mm mm
HDB 58 15 25 30° 58 47.0 30 1.5 3.5 58 32.0 21 34.0 4 5 250 40
HDB 65 20 30 65 52.0 35 1.7 4.5 65 35.5 21 34.0 4 6 250 40
HDB 75 40 60 25° 75 62.0 42 2.0 5.5 75 55.0 32 48.6 4 6 310 70
HDB 90 60 100 90 74.5 47 2.5 6 90 55.0 32 60.5 4 8 375 70
HDB 100 125 180 25° 100 84.0 57 2.5 7 100 60.0 40 60.5 6 8 410 100
HDB 120 250 350 120 101.5 75 2.5 8 125 75.0 46 76.3 8 10 520 110
HDB 150 350 490 150 130.0 90 3.0 10 125 75.0 56 89.1 8 12 520 110
HDB 160 450 630 160 140.0 100 3.0 10 150 90.0 56 89.1 8 12 600 110
HDB 180 700 980 180 155.5 110 3.0 12 158 100.0 70 101.6 8 14 660 110
HDB 200 1000 1400 200 175.0 125 5.0 14 172 100.0 80 114.3 8 14 730 110
HDB 225 1000 1400 225 196.0 140 5.0 15 172 100.0 80 114.3 8 16 730 110
